TYPE B (U)

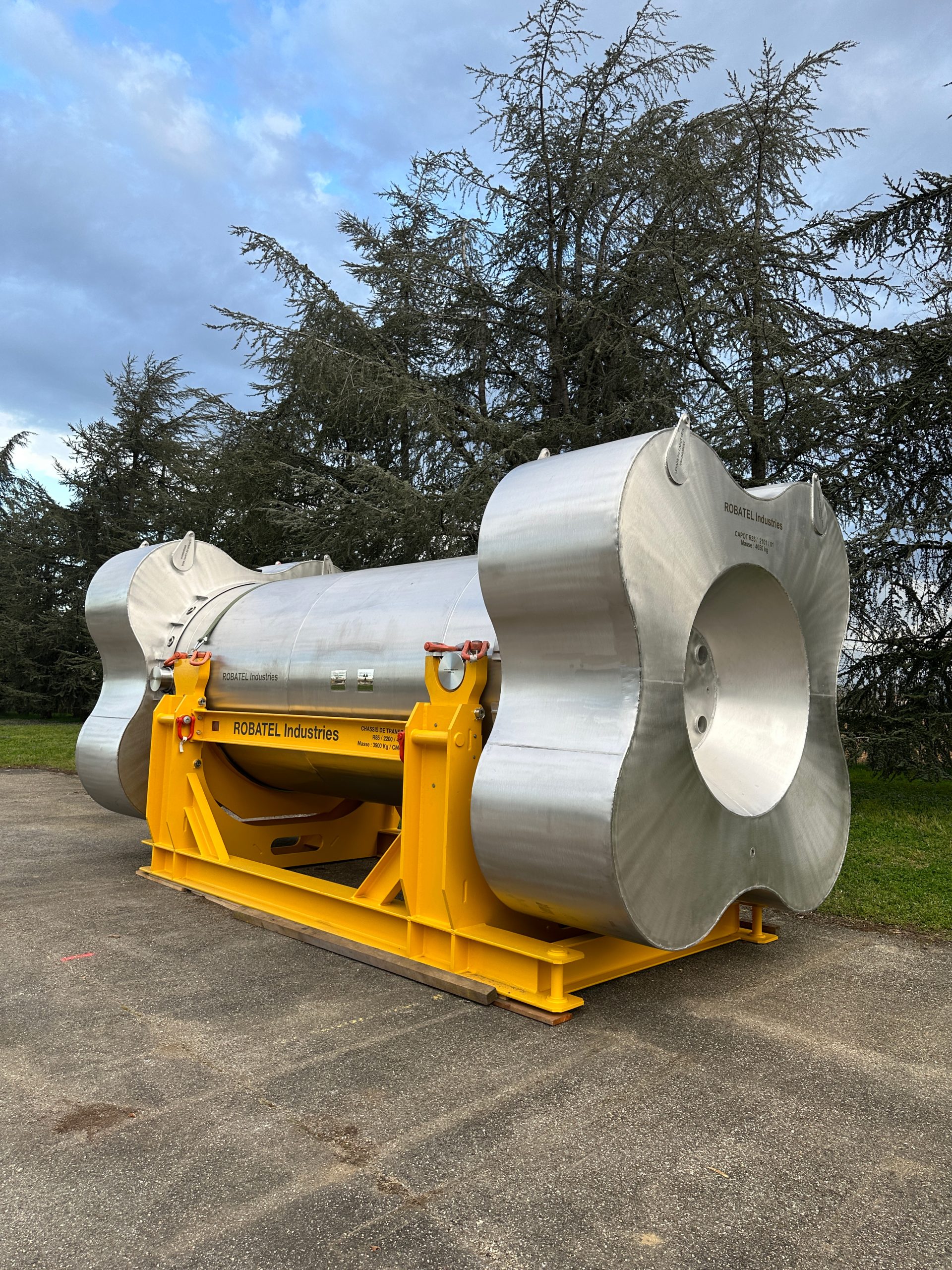

R85
Transportation of control rod guide tube.
Fabrication and supply of all cask operation equipment.
1 Manufactured copy
Applications
Transport of 21 control rod guide tubes
Transport by road
Key points
Adapted for 900, 1300 or 1450 MW power reactor guide tubes
Specifications
Here are all the specs about the transportation casks R85.
Main packaging dimensions:
(with covers)
- Height: 4 980 mm (16,3’)
- Diameter: 3 170 mm (10,4’)
- Total mass (loaded): 54 692 kg (120 575 lbs)
Loading capacities
- Cavity height : 4 535 mm (14,9’)
- Cavity diameter: 1 580 mm (5,2’)
- Max payload: 10 116kg (22 301 lbs)
- Max activity: 7,5 A2
- Max γ activity : 7,5 TBq (équivalent CS137)
Biological protections:
(lead equivalent)
- Radial : 103 mm (4,1 ’’)
Certifications :
(France + Validations abroad)
