TYPE B (U)

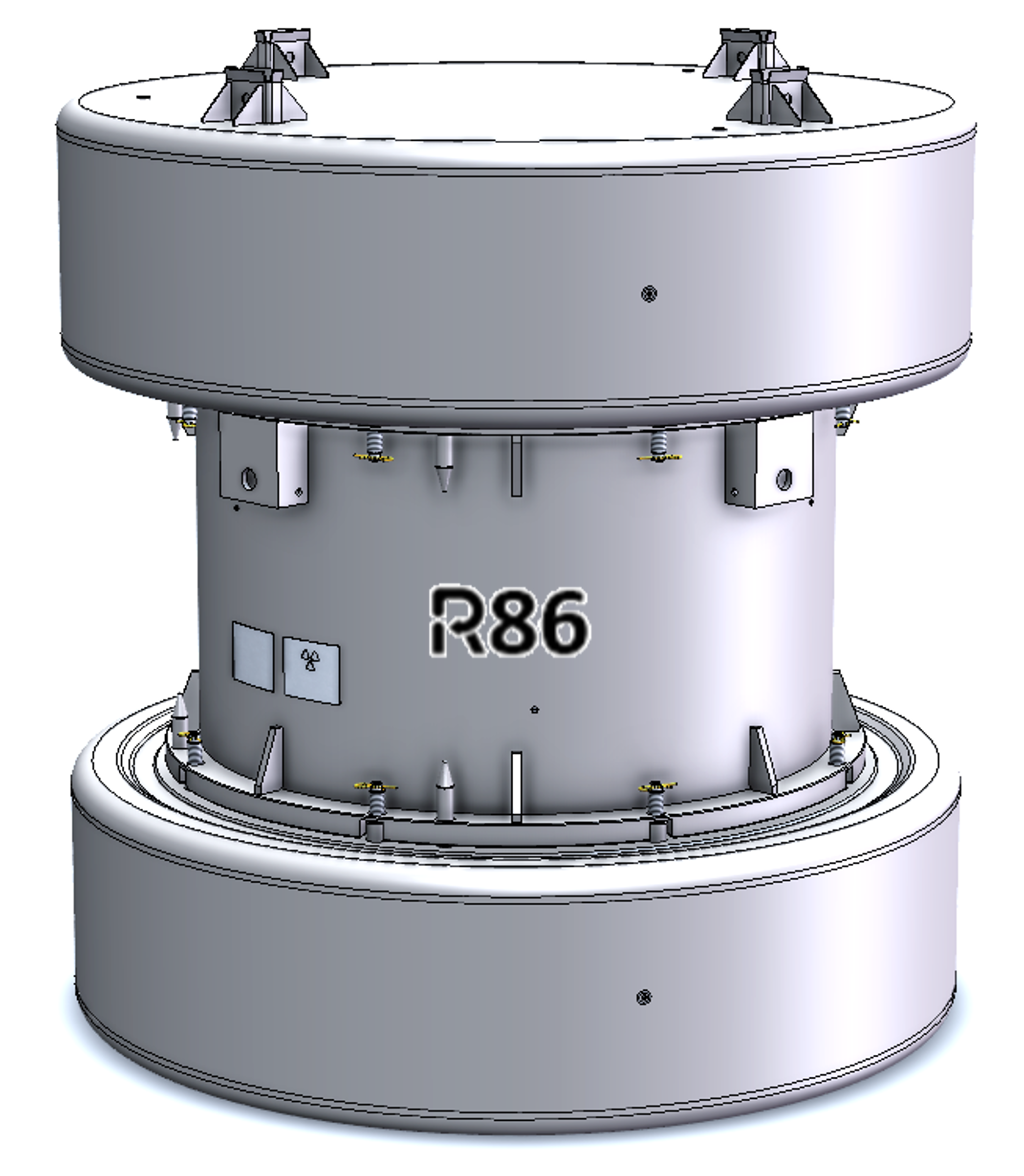

R86
Transport of dismantling waste.
1 Manufactured copy
Applications
- Dismantling packaging for Doel and Tihange
- Immersion packaging for loading
Specifications
Here are all the specs about the transportation casks R86.
Main packaging dimensions:
(with covers)
- Height: 2 370 mm (7,8’)
- Diameter: 2 210 mm (7,3’)
- Total mass (loaded): 23 900 kg (52 690 lbs)
Loading capacities
- Cavity height : 935 mm (3’)
- Cavity diameter: 1 040 mm (3,4’)
- Max payload: 2 250 kg (4 970 lbs)
- Max activity: 6 500 A2 / 12 700 TBq
- Max γ activity : 2 000 TBq / 1 TBq/kg (equivalent Co60).
Biological protections:
(lead equivalent)
- Radial : 220 mm (8,6’’)
Certifications :
(France + Validations abroad)
- Type B(U)
